Nano-D connectors

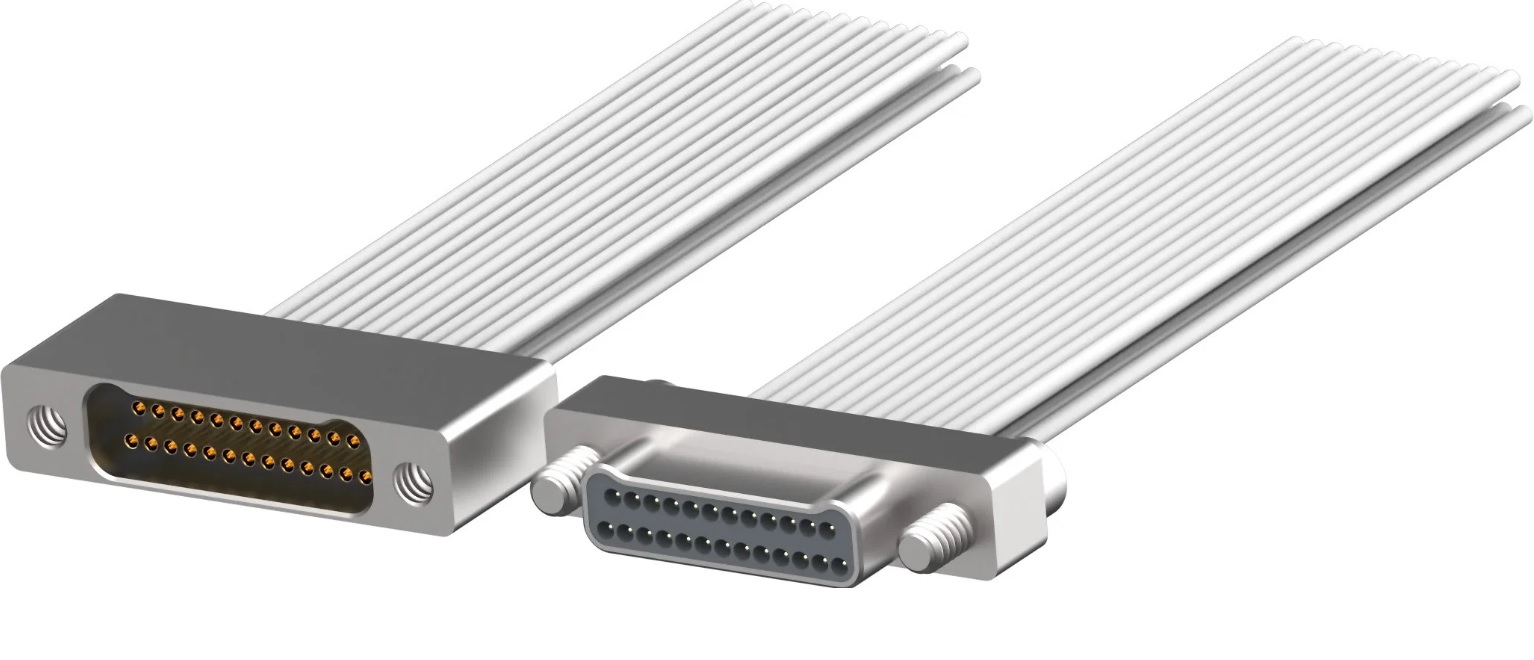

The Zhuyao Connectors ZC32139 series is rugged nano-miniature Nano-D connectors are designed for applications where minimizing size & weight are essential, and ruggedness and reliability are mission critical. Rugged Nano-D metal shell connectors are commonly used in unmanned aerial vehicles, air taxis, satellites, petrochemical, medical device applications and more. ZC32139 Series is available in I/O pre-terminated flying leads and vertical and right-angle board-mount models. Zhuyao Connectors ZC32139 series meet the requirements of MIL-DTL-32139.

Key features:

  • 0.635 mm (.025") contact spacing (double the density of a Micro-D).
  • 9-91 contacts
  • 1 & 2 row options
  • 3 reliable points-of-contact
  • High-reliability twist pin contacts.
  • Metal shell construction with captivated hardware.
  • Also avalible custom-designed Nano miniature connectors
  • MIL-DTL-32139 qualification

Typical applications:

  • Avionics, gimbals, radars.
  • Missiles and guidance systems
  • On-board equipment, telecommunication systems.
  • Navigation systems.
  • Research centres.
  • Medical applications.
