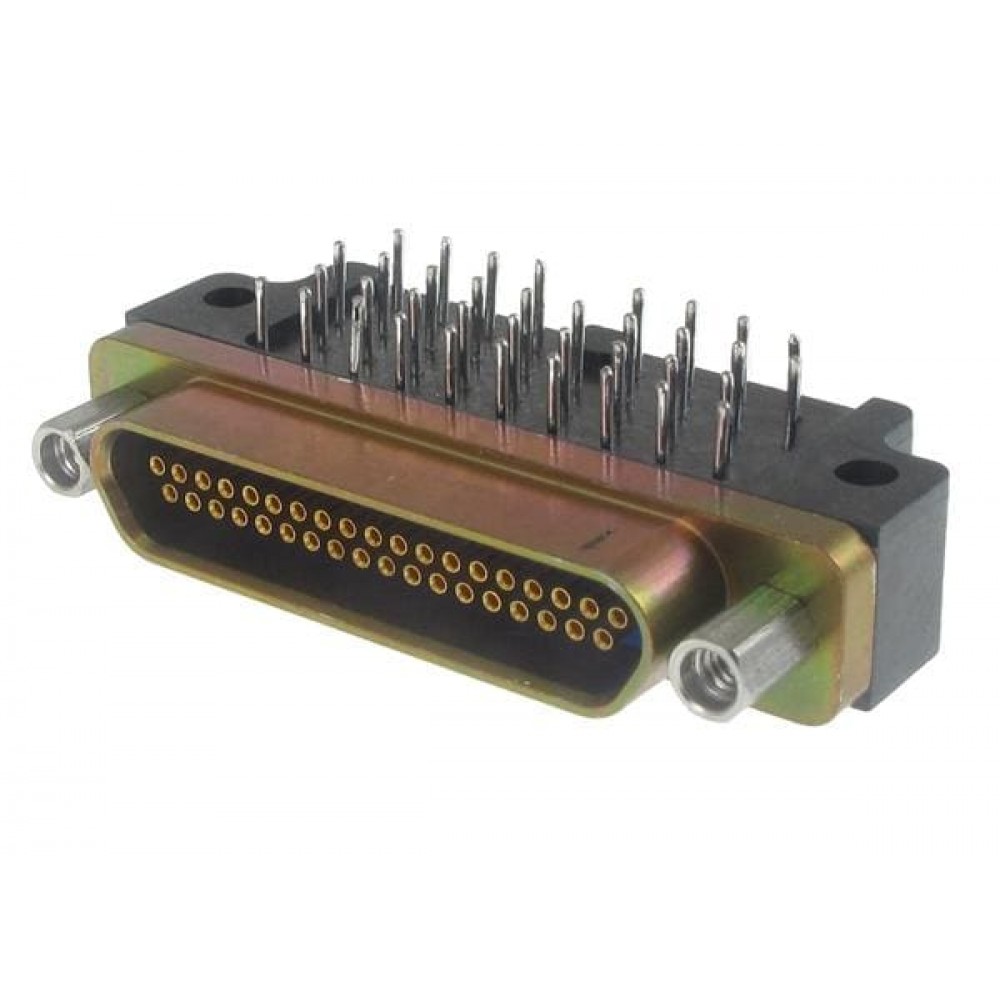

Micro-D connectors

The Zhuyao Connectors ZC83513 series meets all requirements MIL-DTL-83513 standard as: robustness, durability, low contact resistance, high current, dielectric strength, vibration, shocks, etc. With 1.27 mm (.050") contact spacing, ZC83513 connectors which are half the size of D-sub connectors are an ideal solution for weight saving. Our MIL and standard micro-D connectors are based on the highly reliable twist pin contact technology, which by its design and performance enables the system to meet the most severe requirements.

Key features:

  • Space and weight saving.
  • Robust system: excellent resistance to shock and vibration.
  • Low contact resistance, high current capability, high dielectric strength.
  • Space saving wiring solutions.
  • Qualified Micro-D connectors to MIL-DTL-83513 for military applications.
  • Standard range of micro-D connectors according to MIL-DTL-83513.
  • Custom designed connectors and cable assemblies.

Typical applications:

  • Avionics, gimbals, radars.
  • Missiles and guidance systems
  • On-board equipment, telecommunication systems.
  • Navigation systems.
  • Research centres.
  • Medical applications.
